The Treadmill

Case study of how an animated illustration was done.

The initial concept was drawn in ProCreate. Illustrations were made in Adobe Illustrator & animated in Adobe After Effects.

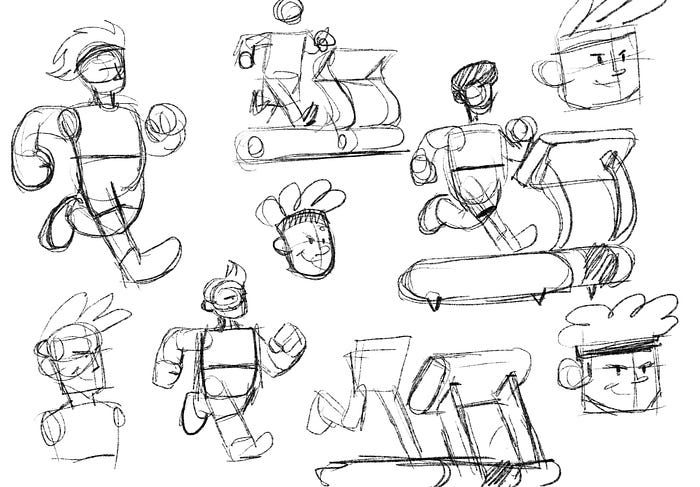

Explored the ideas by scribbles in procreate.

Turned scribbled ideas into a clear concept.

Illustration process of the treadmill, Tool: Illustrator

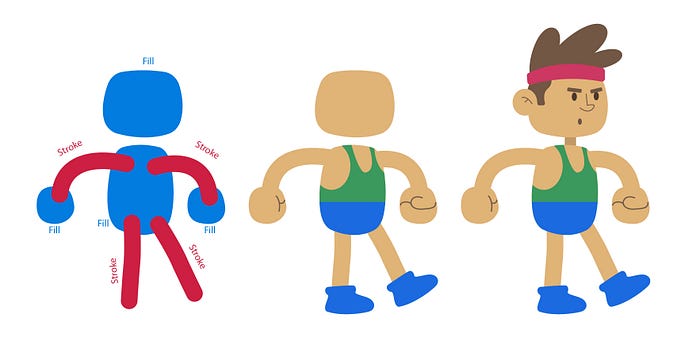

Character illustration break-up.

Used strokes for animating parts (hands & Legs)

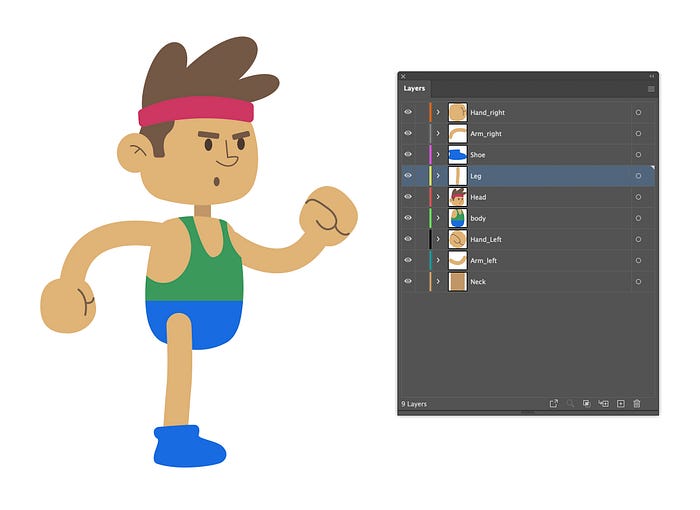

Kept parts as individual layers, planned to animate a single leg and duplicate on the other side, so finalized the character with one leg to export.

Animation

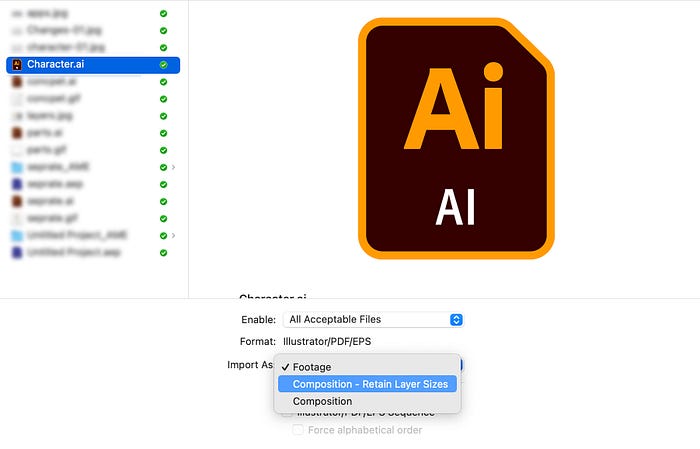

Imported into After effects & chose “Retain layer sizes” from options.

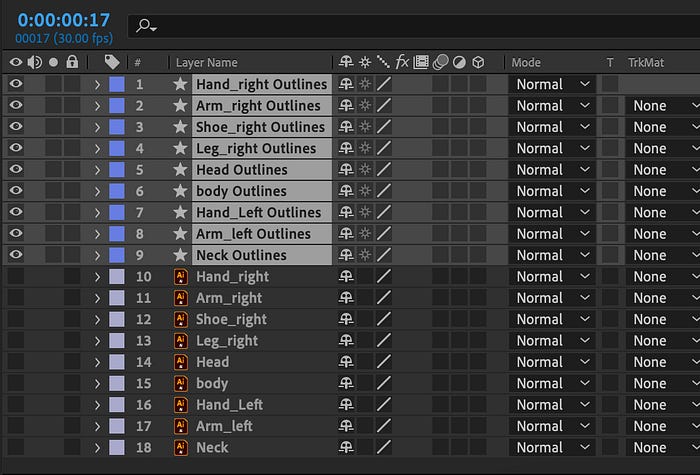

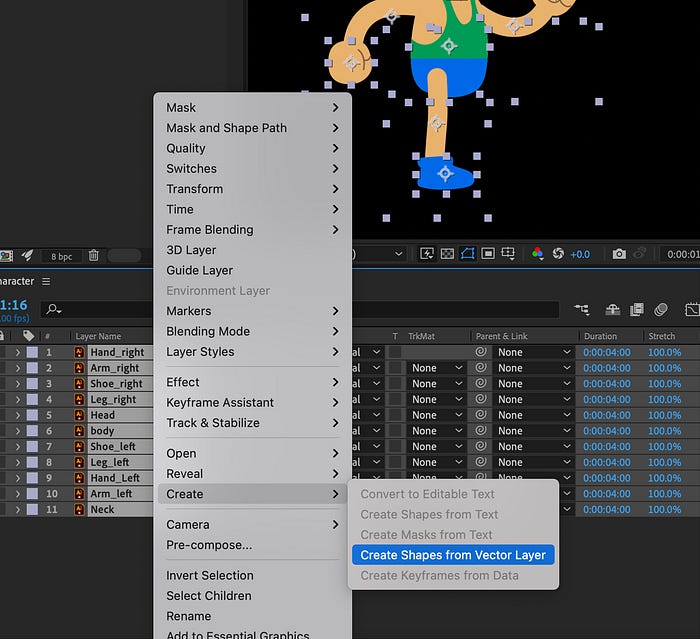

Created vector shapes from the imported AI file.

Animation of leg

Leg & shoe were combined as an induvial comp.

Used Path deforms to animate the leg’s running motion, then the shoe was animated manually with keying, trim paths were used on animated stroke layer to create Socks & Bottoms.

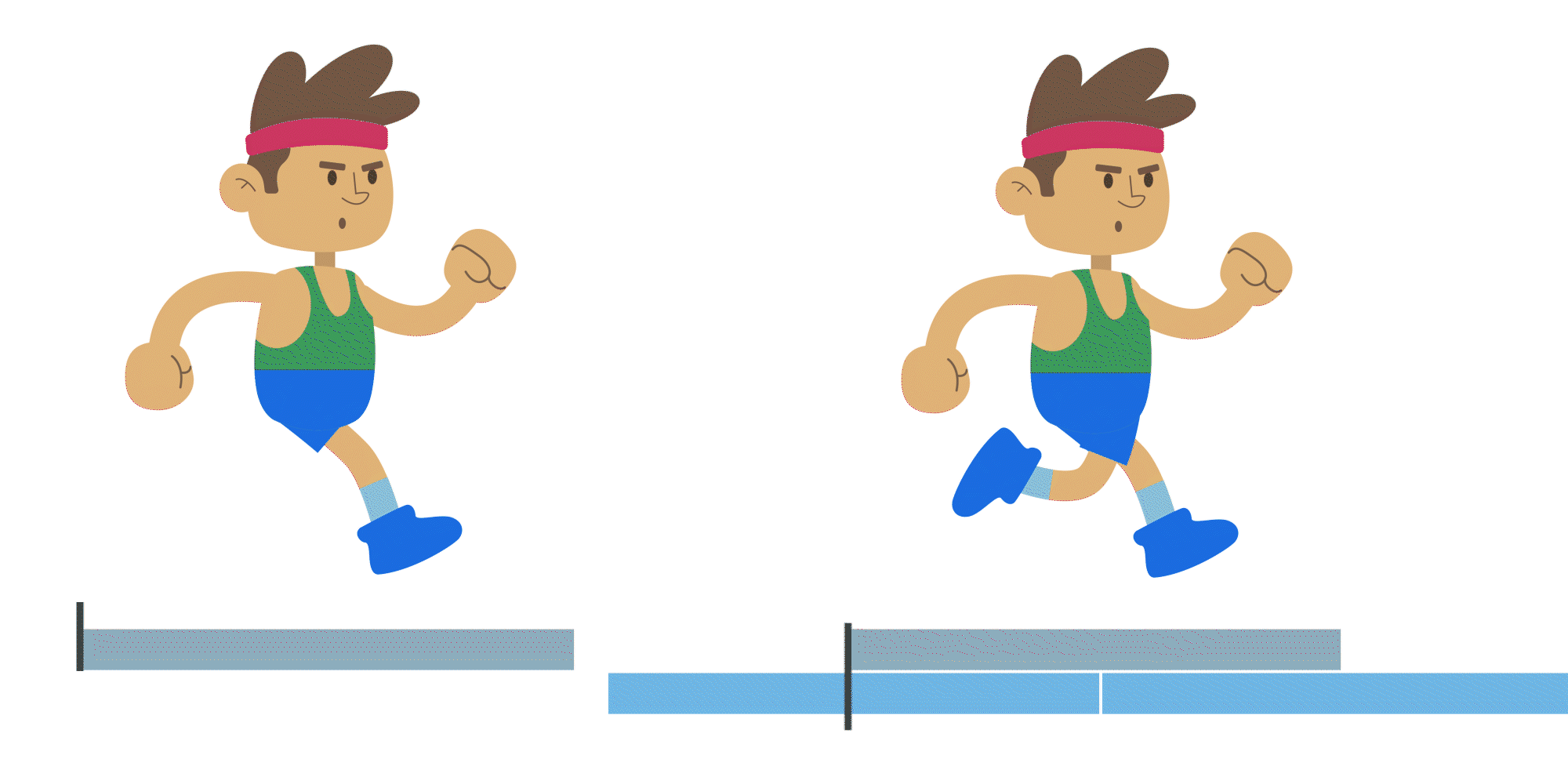

The layer was duplicated & repositioned layer on the timeline to make a motion cycle.

Motion to hand

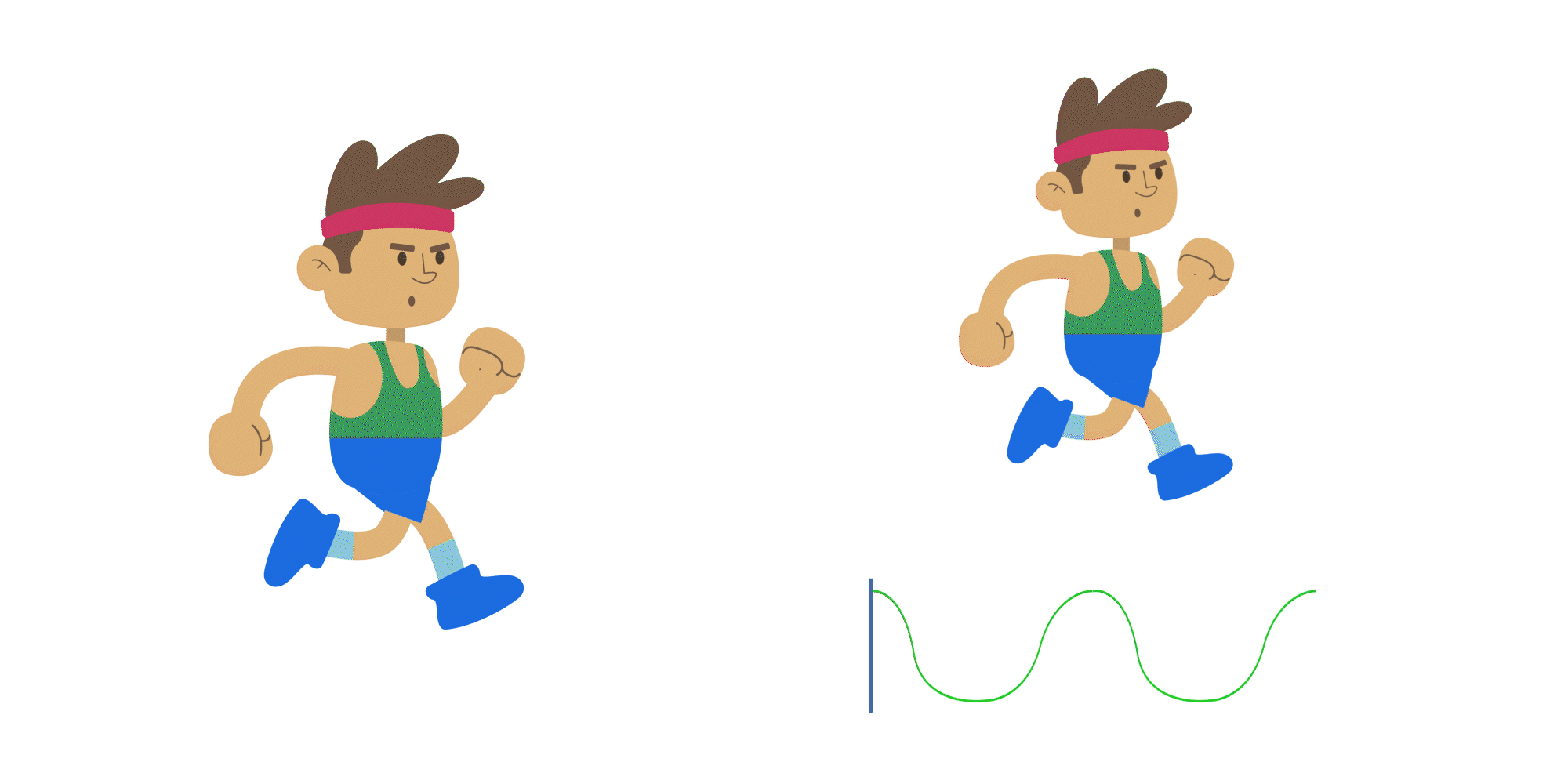

To make a fluid animation, added a little bounce to the hair & overall character.

A simple stroke was animated to make the treadmill run.

Finally

Thank you so much for reading & I hope this will be helpful in your upcoming motion Designs.

If you have any feedback, please shoot it to ganesh@gagsarts.com
